We found 36 results matching your criteria.

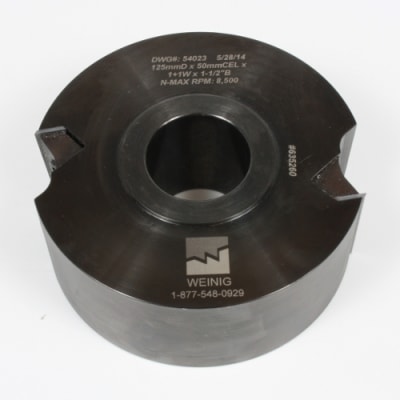

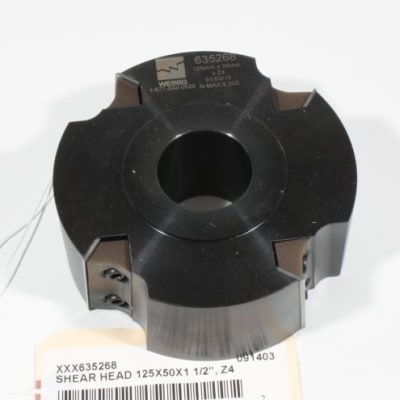

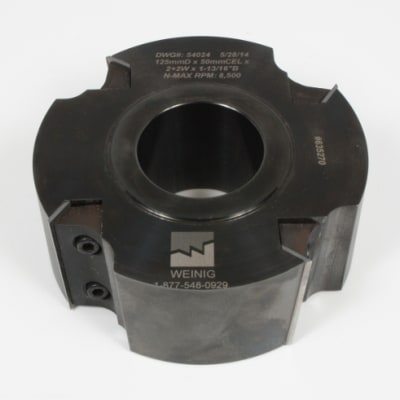

About Conventional Shear Heads
An Economical Solution for Wood Species That Present Tearout Issues!

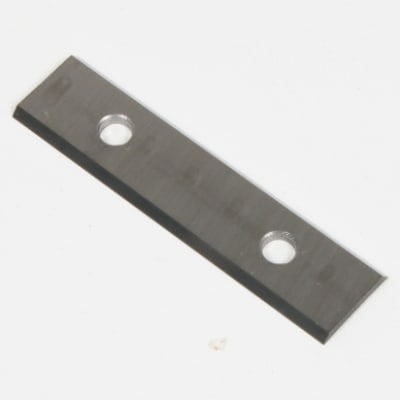

- Standard Replaceable Carbide Inserts That Can Be Exchanged In Minutes
- Reduced Tearout Due to the Alternating Shear Cutting Action
- No Grinder Required

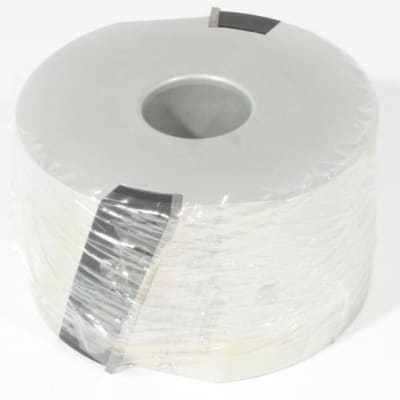

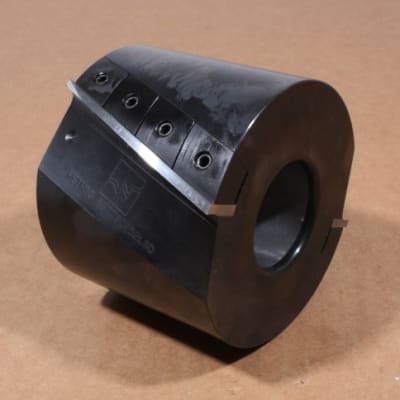

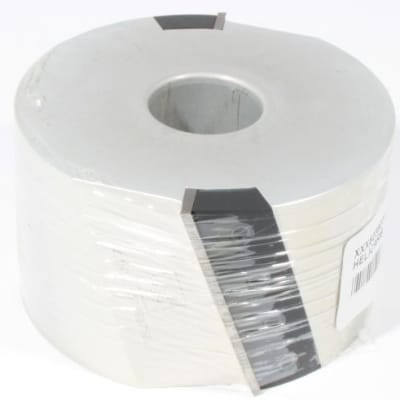

About Conventional Helicarb Heads
A joint effort between WEINIG and Great Lakes Custom Tool has produced a Helical Planerhead with a non-segmented knife!
Among the distinct advantages of this tool are:
- Eliminates tearout in hardwoods and knotty material
- One continuous, uninterrupted cutting edge
- Inserts can be resharpened on a Weinig R960 series grinder
- True running accuracy within 0.0005"
- Can be constructed in PowerLock and Hydro also
Each cutterhead contains a full set of 10 degree installed inserts. 5 degree inserts also available for extreme hardwoods; 15 degree knives available for softwoods.
All straight bore heads = 135mm OD
Spindle usage (RH or LH) required when ordering.
Maximum 9000 RPM
