Helicarb Hydro Heads

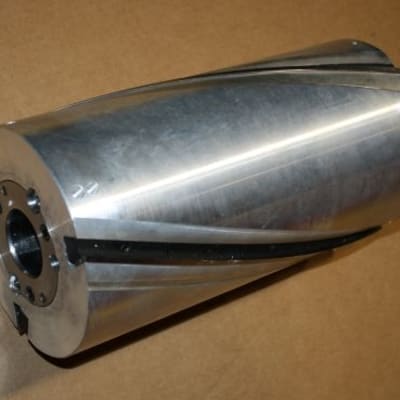

A joint effort between WEINIG and Great Lakes Custom Tool has produced a Helical Planerhead with a non-segmented knife! Among the distinct advantages of this tool are: Eliminates tearout in hardwoods and knotty material One continuous, uninterrupted cutting edge Inserts can be resharpened on a Weinig R960 grinder True running accuracy within 0.0005" Can be constructed in PowerLock or conventional tooling also

Each cutterhead contains a full set of installed inserts. Selection of either 5, 10, or 15 degree knives, dependent upon the application.All Hydro Heads = 160mm OD
Available As:Hydro-Planerheads With 1 13/16", 2 1/8" or 50mm Bore
Spindle usage (Right Hand or Left Hand) required when ordering.Maximum 9000 RPMContact the WEINIG Tooling Department to order.


Contact Weinig Tooling to order Helicarb Hydro Heads:

Width (MM)	Inches	Number of Knife Slots	Hydro Bore Price U.S.$
75	2 61/64"	3	1757.00
115	4 17/32"	3	2264.00
170	6 11/16"	3	2985.00
235	9 1/4"	3	3580.00
75	2 61/64"	4	2016.00
115	4 17/32"	4	2614.00
170	6 11/16"	4	3461.00
235	9 1/4"	4	4176.00
75	2 61/64"	6	2592.00
115	4 17/32"	6	3385.00
170	6 11/16"	6	4536.00
235	9 1/4"	6	5471.00
